Satake FMS2000 Plastic Sorting Demo

PIKASEN FMS2000 Dry Bean Multi-Sort

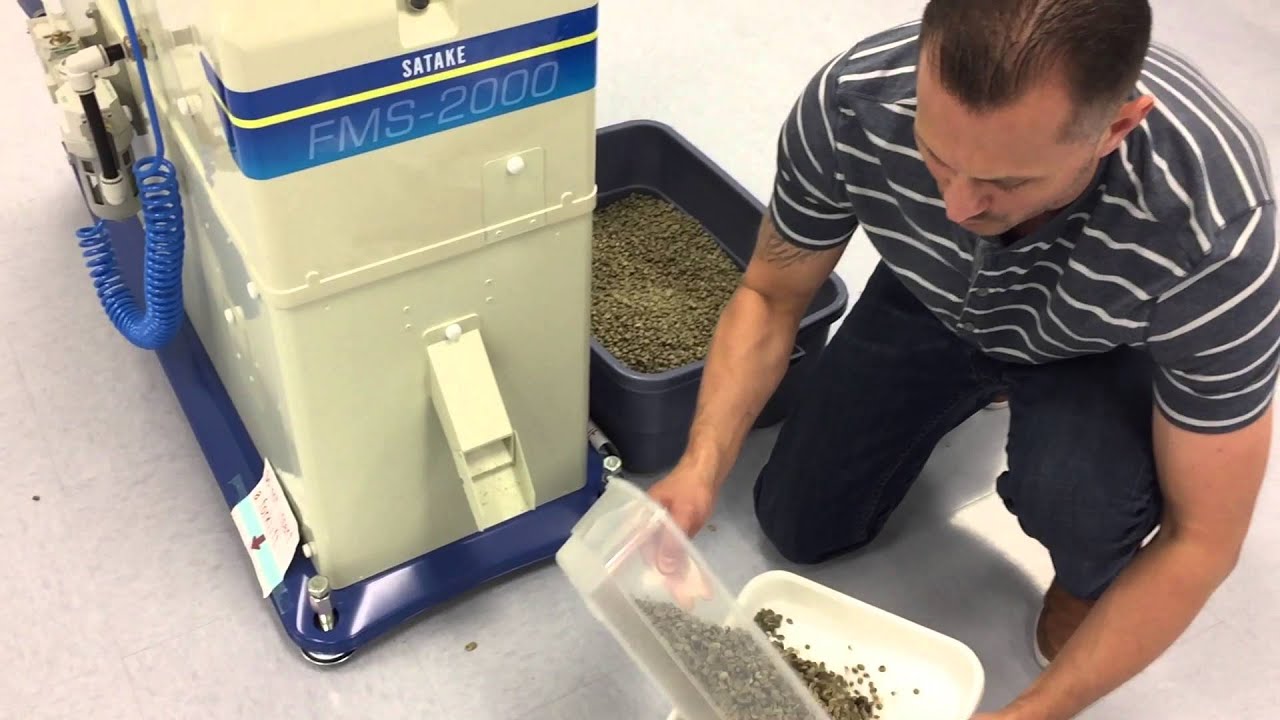

PIKASEN FMS2000 Sorting Green Coffee Beans

PIKASEN FMS2000 Sorting Chickpeas (Garbanzo)

Description

The Satake PIKASEN FMS2000 is a compact, full color RGB optical sorter ideal for small and medium size applications. The FMS incorporates advanced digital image processing software and automatic image adjustment functions allowing accurate sorting of a wide range of product types. The FMS2000 uses long life, low energy consumption lighting that uniformly illuminates the product, with an average lifespan of up to 20,000 hours. It features a direct power supply to a single phase outlet.

The Satake FMS2000 is not only ideal for pre-production, laboratory use and research and development — but it is also a world-class sorter for full scale production up to 4,000 pounds per hour.

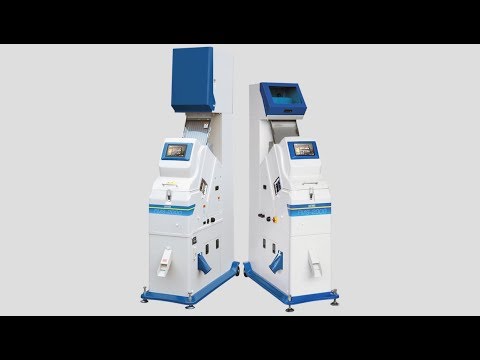

There are currently two models of the PIKASEN FMS2000, the cascade and feeder version. The two versions mainly differ in regard to how the incoming product flows through the machine. In the cascade version, the product free flows by gravity through a cut gate system. In the feeder version, product is fed in to a hopper and then onto a vibratory feeder. Other features and benefits are listed below, or can be seen on the brochure PDFs.

Features and Benefits
Color Sorter Optical Sorting Machine - Satake PIKASEN FMS2000 Color Sorter Optical Sorting Machine - Satake PIKASEN FMS2000
  • Full color RGB cameras (0.14mm/pixel resolution)
  • 240mm wide chute with vibratory feeder system
  • Satake Smart Sensitivity (3S) system
  • Touch screen similar to smart phone
  • 2 chute options (flat, u-groove)
  • Ability to sort by size and shape
  • Easy cleaning and maintenance
  • Roller wheels with small footprint
  • Integrated aspiration (optional)
  • Full color RGB cameras (0.14mm/pixel resolution)
  • 240mm wide chute with gravity/cascade system
  • Satake Smart Sensitivity (3S) system
  • Touch screen similar to smart phone
  • 2 chute options (flat, u-groove)
  • Integrated aspiration/dust collection
  • Easy cleaning and maintenance
  • Roller wheels with small footprint
  • Long life, low energy consumption lighting



Color Sorter Optical Sorting Machine - Satake PIKASEN FMS2000

☆ Flexible ☆

Incoming product is fed through a patented high-volume feed delivery system into an inclined 240mm chute opening. Two tray options allow various size product to flow smoothly and quickly.

Color Sorter Optical Sorting Machine - Satake PIKASEN FMS2000



☆ Multi-Purpose ☆

The high capacity system is able to consistently sort from one to 4000 pounds of product per hour while the precise small pitch ejectors effectively remove rejects.

Color Sorter Optical Sorting Machine - Satake PIKASEN FMS2000



☆ Simple ☆

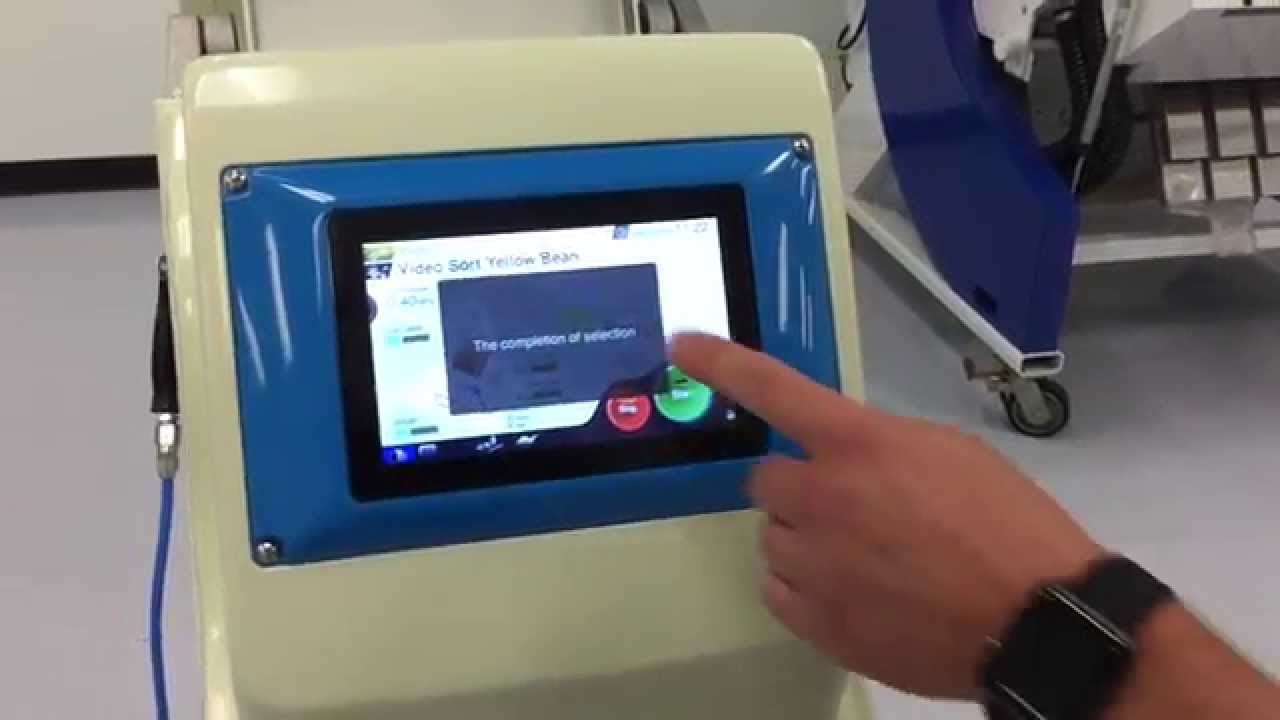

An intuitive full color user interface touch panel is easy to use with similar actions to that of a smart phone or tablet.
