Milling Separator
Milling Separator
Description

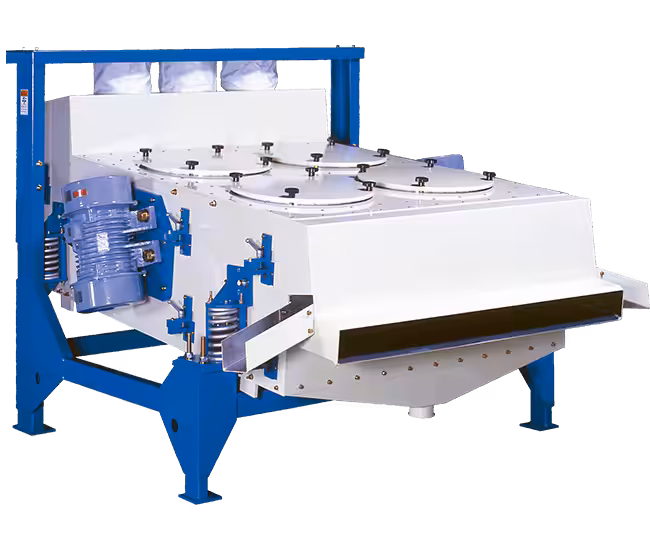

The Satake Milling Separator SFI is an all purpose separator for the cleaning of cereal grains, such as wheat, rice, maize (corn), rye, oats, etc. The oscillation of the double deck sieves efficiently removes both large or coarse material, and fine impurities from the grain being cleaned.
The SFI is available as a Silo (elevator) Intake Separator for high capacities and as a Milling Separator, to provide a more precise separation.
The SFI can be used with a simple exhaust or can be matched to either a SCA Closed Circuit Aspirator or an open circuit aspirator.
Specifications
| Model | SFI1000A | SFI1500A | |
| Capacity (t/hr)* | Intake | 65 | 100 |
| Cleaning | 16 | 24 | |
| Motor (kW-p) | 0.85-6 x 2 | 1.6-6 x 2 | |
| Suction | (m3 / min.) | 12 | |
| (kPa) | -0.2 ~ -0.1 | ||
* The capacity quoted is for the wheat of ≥ 78kg/h1, ≤ 15.0% moisture content and ≤ 3.0 % i m purities. For other applications, please refer to the Satake Technical Division for advice.
Dimensions
| Model | W(mm) | L(mm) | H(mm) | Net Weight (kg) | ||
| Intake | Cleaning | Intake | Cleaning | |||
| SFI1000A | 1,616 | 1,000 | ||||
| 2,420 | 2,339 | 1,933 | 1,768 | |||
| SFI1500A | 2,236 | 1,500 | ||||
Features
High separating efficiency.
Large capacity.
Robust construction with low maintenance requirements.
Easy sieve removal.
Easy inspection cover removal. Simple and precise motor alignment.
All Satake products are the subject of continuous development and, as a result, their specification may change and differ in detail from those shown
