Paddy Separator

Paddy Separator

Category:

Description

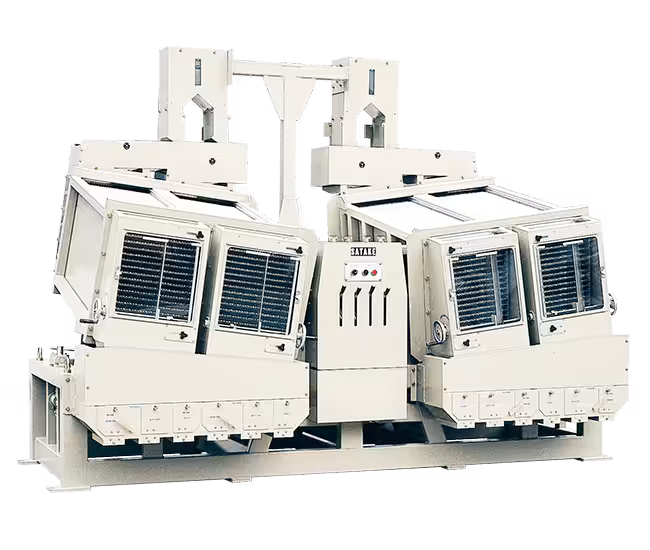

The Satake Paddy Separator PS is an oscillation-type paddy separator with a very high sorting performance and an easy maintenance design.
All varieties of rice such as long grain, medium grain and short grain can be sorted easily and accurately.
It separates a mixture of paddy and brown rice into three distinct classes: paddy, mixture of paddy and brown rice and brown rice, to be sent to a husker, back to the paddy separator and to a rice whitener, respectively

Specifications
Model PS2000 PS4000 PS800D/DR
Required Power (kW) 0.75(4P) 2.2(4P) 3.7(4P)
Output Capacity (t/h)*1 2~2.5 3.5~5 7~10

*1 Brown Rice, Long Grain.

Dimensions

Model W (mm) L(mm) H(mm) Weight (kg) Volume(m3)
PS2000 1,330 1 ,760 2,220 970 5.7
P84000 2,230 1,870 2,240 1,670 9.4
PS8000/DR 3,130 1,760 2,360 2,250/2,300 14.0
Features

1. Stable Performance:
Adjustment during operation is not necessary because of its constant and stable separating performance.

2. Minimized Installation Space:
Compact design and large capacity means that installation space for a given separating capacity is very small.

3.  Automatic Stop Device:
Machine automatically stops when the tank is nearly empty.

4. Easy Sampling:
Samples of brown rice can be taken from a special outlet by diverter valves, for easy inspection of quality and flow rate.

5. Easy Inspection of Separating Condition:
The discharge side is covered with a transparent cover so that the separating conditions of the grain are easily checked.

6. Easy Flow Adjustment:
Flow rates are adjusted by a manual remote lever on “D” model and by increase / decrease buttons on “DR” model.

All Satake products are the subject of continuous development and, as a result, their specification may change and differ in detail from those shown.
