Destoner
Destoner
Description

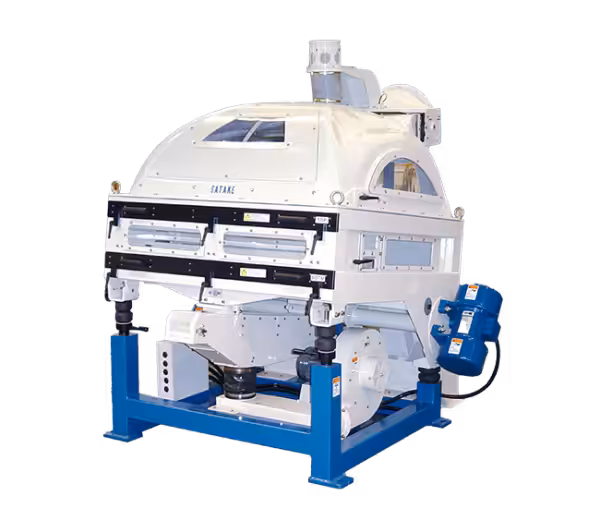

The Satake Destoner SGA separates stones and heavy impurities from grains, utilizing bulk density differences.
Rigid, heavy-duty construction with thicker steel plates and a sturdy frame ensures long life.
This is the ideal machine for separating stones from grains in an efficient, trouble-free manner.
Specifications
| Model | SGA5B-T | SGA10B-7 | SGA15BD-T | |
| Capacity (t/I–1) | Paddy | 3 | 7 | 10 |
| Brown Rice | 5 | 10 | 15 | |
| Wheat | 5~7 | 7~13 | 12~18 | |
| Required Motor (kW) | 0.37kWx2, 0 .75kWxl | 0.3kWx2, 0.75kWx1 | 0.3kWX2, 0.75kWX1 | |
| Air Volurne(m3imin.) | 80~90 | 120~140 | 180~210 | |
| Static Pressure (kPa) | -0.7 | -0.7 | -0.7 | |
Material Condition
| Material | Moisture Content(%) | Bulk Density(t/m3) |
| Paddy | Less than 15 | 0.50~0.60 |
| Brown Rice | Less than 15 | 0.75~0.80 |
| Wheat | Less than 15 | 0.72~0.85 |
Features
1. Stone Discharging and Resort Mechanism:
The discharged stones from the primary sieves contain some grains. This mixed fraction is sent to the secondary sieve by a pneumatic transfer system, using a built-in fan, Stones are concentrated and discharged.
2. Very Low Maintenance:
Heavy-duty construction, permanent lubrication and easy access to sieves for cleaning or replacement result in very low maintenance.
3. Compact Design:
The Satake Destoner is a compact unit and requires less installation space. The vibratory drive eliminates the need for any pulleys, belts, eccentric bearings, etc. and contributes to the improved sanitation in plants.
Dimensions
| Model | W (mm) | L (mm) | H (mm) | Net Weight (kg) |
| SGA5B-T | 1,225 | 1,955 | 1,979 | 620 |
| SGA10B-T | 1,754 | 1,955 | 1,946 | 750 |
| SGA15BD-T | 2,440 | 2,074 | 2,179 | 1,030 |
*Dimensions with secondary sorting device
All Satake products are the subject of continuous development and, as a result, their specification may change and differ in detail from those shown.
